Sketch Selection

AWS D 1.2

Quick Guide on Sketches Symbols by Standard (Code)

Recommended Welding Joints and Process for Aluminum Welding

Symbols for Weld Types:
Symbols for Joint Types:
Symbols for Weld Process:
Symbols for Base Metal Thickness and Penetration:
1 Square Groove
2 Single V-Groove
3 Double V-Groove
4 Single Bevel-Groove
5 Double Bevel-Groove
6 Single U-Groove
7 Double U-Groove
8 Single J-Groove
9 Double J-Groove
10 Flare Groove
11 Flare Groove (Open Root)
12 Flare Bevel Fillet
B=Butt Joint
C=Corner Joint
T=T Joint
BC=Butt or Corner Joint
TC=T or Corner Joint
BTC=Butt, T or Corner Joint
See sketches for recommended welding process





U=Unlimited Thickness, Complete Joint Penetration
L=Limited Thickness, Complete Joint Penetration
P=Partial Joint Penetration

Example:
B-U7-S is a Butt Joint with Unlimited Thickness (Complete Joint Penetration),
and Double U-Groove weld for SAW Process

Please select sketch from the list below, then click here:

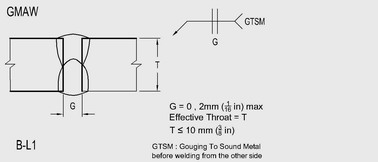

D12-B-L1

Go to top of the page

D12-B-L1-1

Go to top of the page

D12-B-L1-2

Go to top of the page

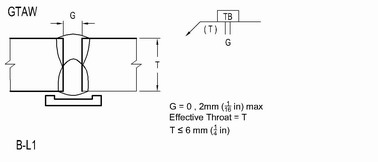

D12-B-L1-3

Go to top of the page

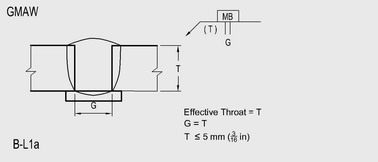

D12-B-L1a

Go to top of the page

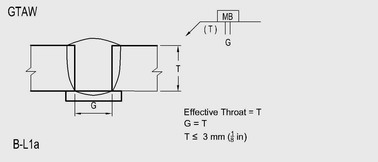

D12-B-L1a-1

Go to top of the page

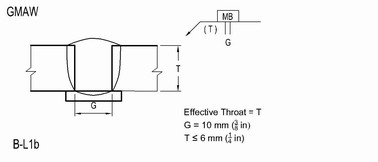

D12-B-L1b

Go to top of the page

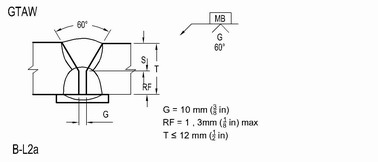

D12-B-L2a

Go to top of the page

D12-B-L2b

Go to top of the page

D12-B-L2b-1

Go to top of the page

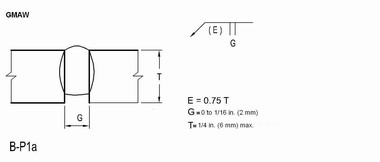

D12-B-P1a-MIG

Go to top of the page

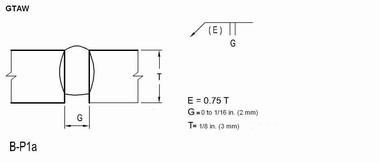

D12-B-P1a-TIG

Go to top of the page

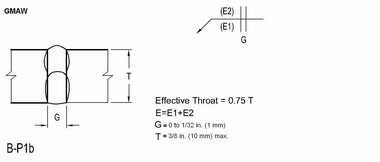

D12-B-P1b-MIG

Go to top of the page

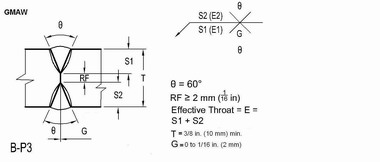

D12-B-P3-MIG

Go to top of the page

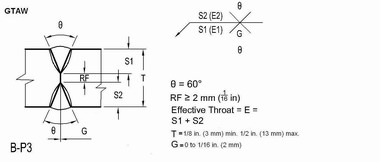

D12-B-P3-TIG

Go to top of the page

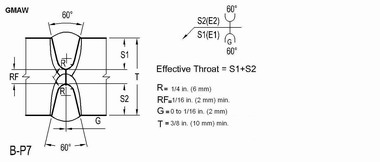

D12-B-P7-MIG

Go to top of the page

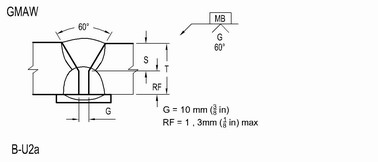

D12-B-U2a

Go to top of the page

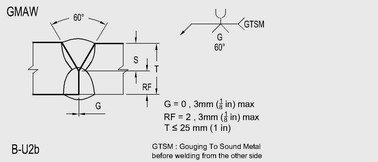

D12-B-U2b

Go to top of the page

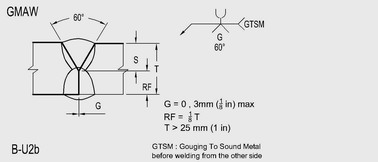

D12-B-U2b-1

Go to top of the page

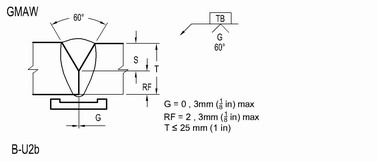

D12-B-U2b-2

Go to top of the page

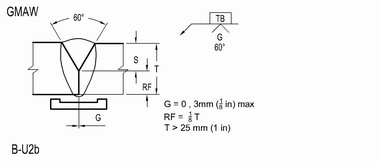

D12-B-U2b-3

Go to top of the page

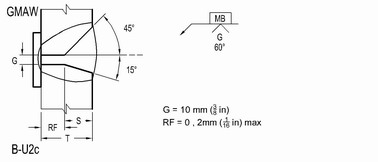

D12-B-U2c

Go to top of the page

D12-B-U2d

Go to top of the page

D12-B-U2d-1

Go to top of the page

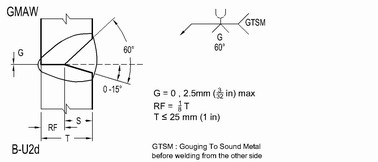

D12-B-U2d-2

Go to top of the page

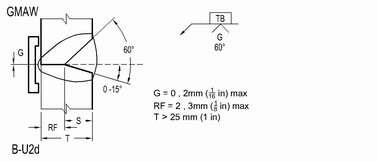

D12-B-U2d-3

Go to top of the page

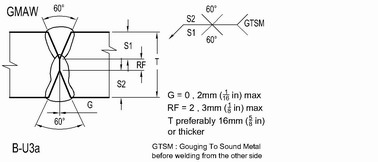

D12-B-U3a

Go to top of the page

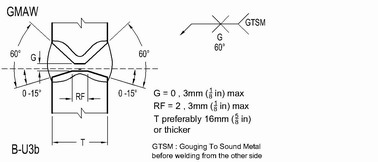

D12-B-U3b

Go to top of the page

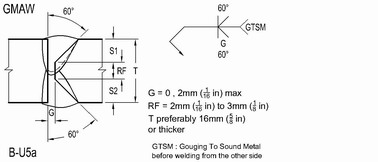

D12-B-U5a

Go to top of the page

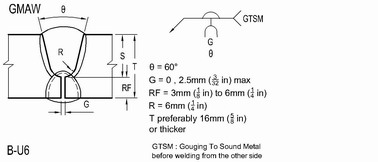

D12-B-U6

Go to top of the page

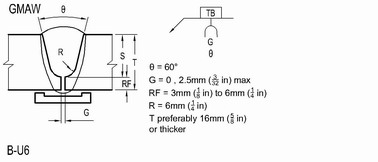

D12-B-U6-1

Go to top of the page

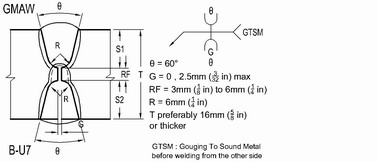

D12-B-U7

Go to top of the page

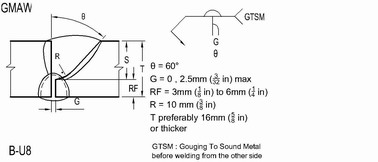

D12-B-U8

Go to top of the page

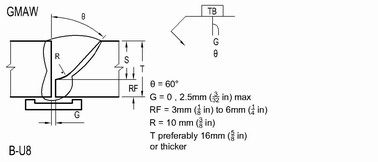

D12-B-U8-1

Go to top of the page

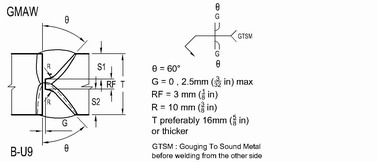

D12-B-U9

Go to top of the page

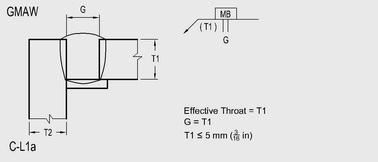

D12-C-L1a

Go to top of the page

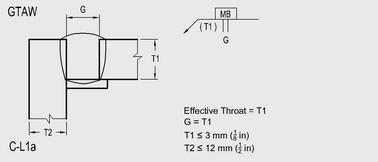

D12-C-L1a-1

Go to top of the page

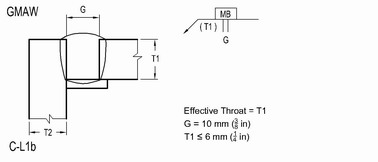

D12-C-L1b

Go to top of the page

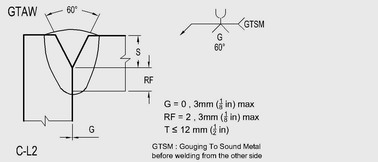

D12-C-L2

Go to top of the page

D12-C-L2a

Go to top of the page

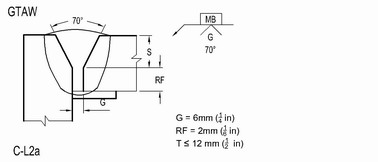

D12-C-L2a-1

Go to top of the page

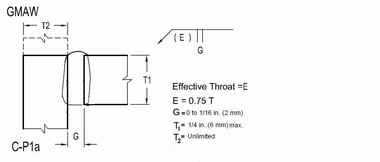

D12-C-P1a-MIG

Go to top of the page

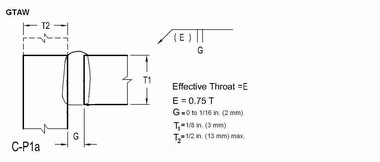

D12-C-P1a-TIG

Go to top of the page

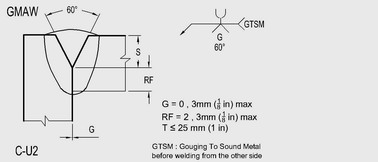

D12-C-U2

Go to top of the page

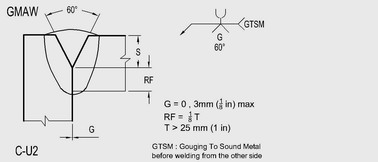

D12-C-U2-1

Go to top of the page

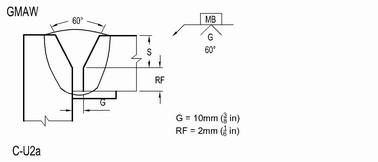

D12-C-U2a

Go to top of the page

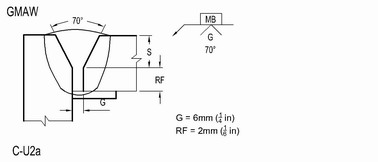

D12-C-U2a-1

Go to top of the page

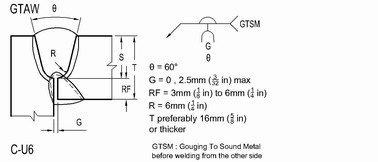

D12-C-U6

Go to top of the page

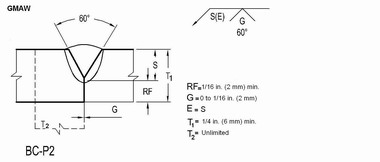

D12-BC-P2-MIG

Go to top of the page

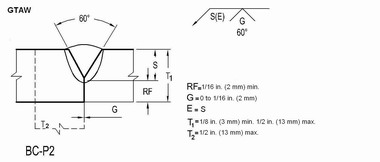

D12-BC-P2-TIG

Go to top of the page

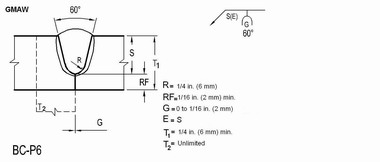

D12-BC-P6-MIG

Go to top of the page

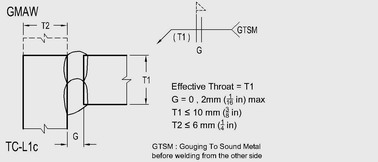

D12-TC-L1c

Go to top of the page

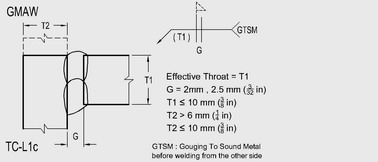

D12-TC-L1c-1

Go to top of the page

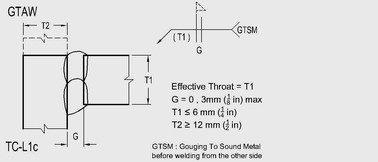

D12-TC-L1c-2

Go to top of the page

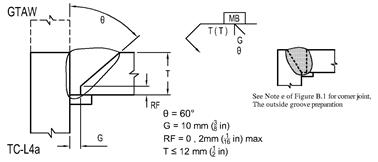

D12-TC-L4a

Go to top of the page

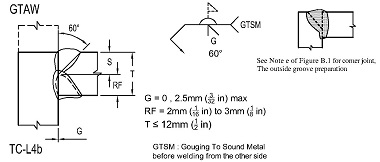

D12-TC-L4b

Go to top of the page

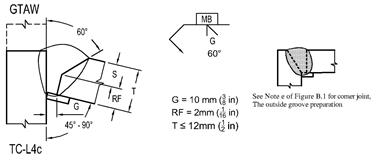

D12-TC-L4c

Go to top of the page

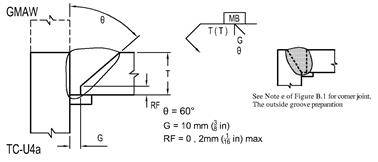

D12-TC-U4a

Go to top of the page

D12-TC-U4b

Go to top of the page

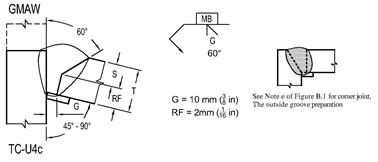

D12-TC-U4c

Go to top of the page

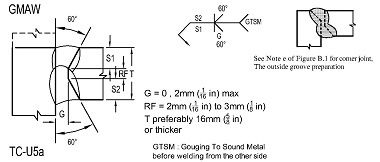

D12-TC-U5a

Go to top of the page

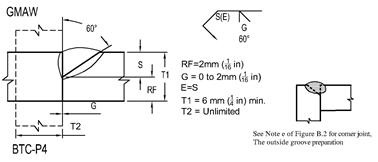

D12-BTC-P4-MIG

Go to top of the page

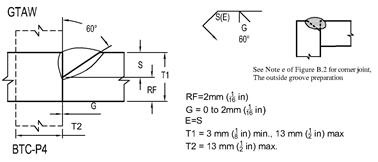

D12-BTC-P4-TIG

Go to top of the page

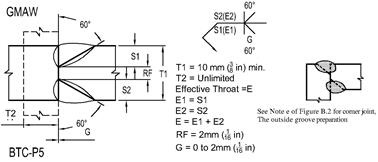

D12-BTC-P5-MIG

Go to top of the page

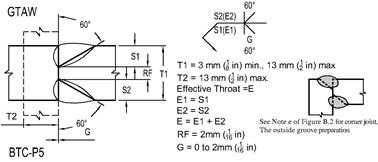

D12-BTC-P5-TIG

Go to top of the page

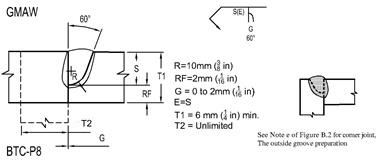

D12-BTC-P8-MIG

Go to top of the page

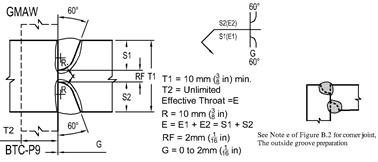

D12-BTC-P9-MIG
