Sketch Selection

AWS D 1.5

Quick Guide on Sketches Symbols by Standard (Code)

Symbols for Weld Types:
Symbols for Joint Types:
Symbols for Weld Process:
Symbols for Base Metal Thickness and Penetration:
1 Square Groove
2 Single V-Groove
3 Double V-Groove
4 Single Bevel-Groove
5 Double Bevel-Groove
6 Single U-Groove
7 Double U-Groove
8 Single J-Groove
9 Double J-Groove
10 Flare Groove
11 Flare Groove (Open Root)
12 Flare Bevel Fillet
B=Butt Joint
C=Corner Joint
T=T Joint
BC=Butt or Corner Joint
TC=T or Corner Joint
BTC=Butt, T or Corner Joint
GF for GMAW (MCAW) or FCAW
S for SAW
Not any of the above=SMAW



U=Unlimited Thickness, Complete Joint Penetration
L=Limited Thickness, Complete Joint Penetration
P=Partial Joint Penetration

Example:
B-U7-S is a Butt Joint with Unlimited Thickness (Complete Joint Penetration),
and Double U-Groove weld for SAW Process

Please select sketch from the list below, then click here:

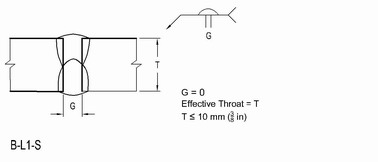

D15-B-L1-S

Go to top of the page

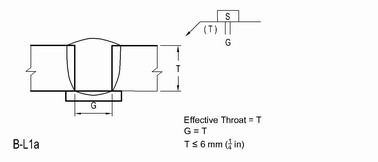

D15-B-L1a

Go to top of the page

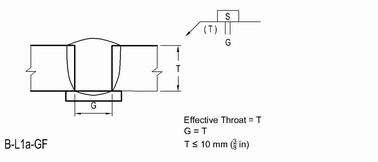

D15-B-L1a-GF

Go to top of the page

D15-B-L1a-S

Go to top of the page

D15-B-L1b

Go to top of the page

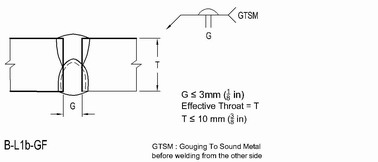

D15-B-L1b-GF

Go to top of the page

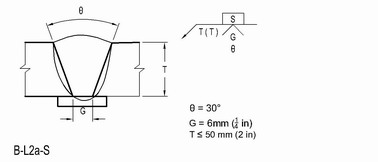

D15-B-L2a-S

Go to top of the page

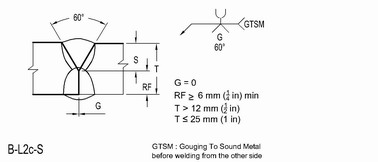

D15-B-L2c-S

Go to top of the page

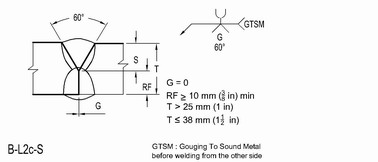

D15-B-L2c-S-1

Go to top of the page

D15-B-L2c-S-2

Go to top of the page

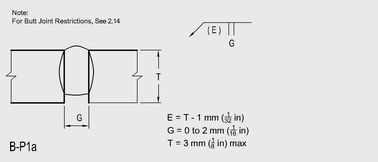

D15-B-P1a

Go to top of the page

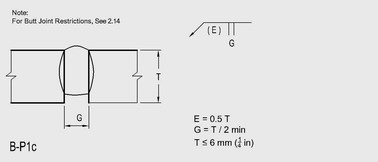

D15-B-P1c

Go to top of the page

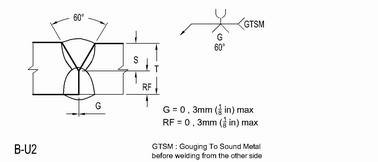

D15-B-U2

Go to top of the page

D15-B-U2a-20

Go to top of the page

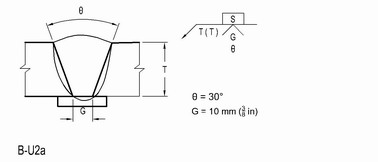

D15-B-U2a-30

Go to top of the page

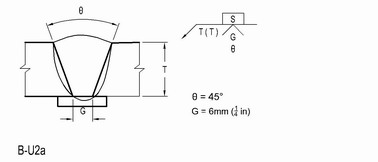

D15-B-U2a-45

Go to top of the page

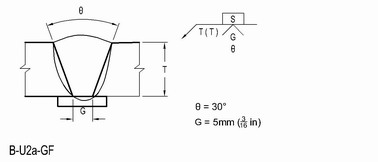

D15-B-U2a-GF-30-1

Go to top of the page

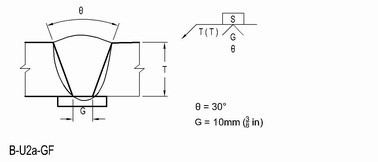

D15-B-U2a-GF-30-2

Go to top of the page

D15-B-U2a-GF-45

Go to top of the page

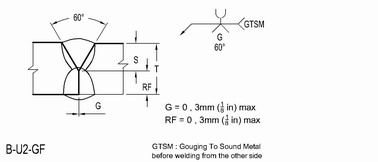

D15-B-U2-GF

Go to top of the page

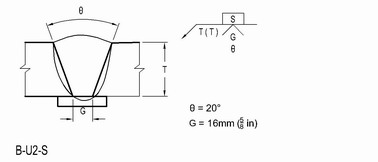

D15-B-U2-S

Go to top of the page

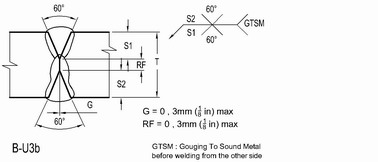

D15-B-U3b

Go to top of the page

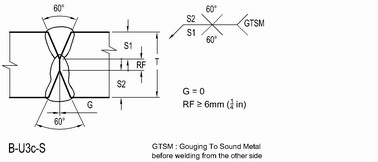

D15-B-U3c-S

Go to top of the page

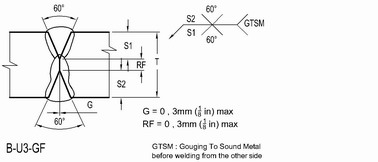

D15-B-U3-GF

Go to top of the page

D15-B-U4a-30

Go to top of the page

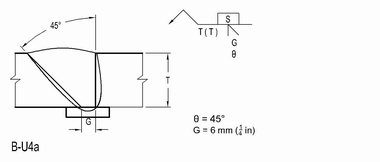

D15-B-U4a-45

Go to top of the page

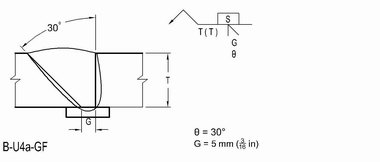

D15-B-U4a-GF-30-1

Go to top of the page

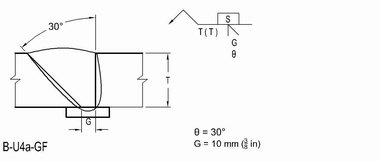

D15-B-U4a-GF-30-2

Go to top of the page

D15-B-U4a-GF-45

Go to top of the page

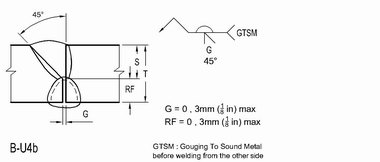

D15-B-U4b

Go to top of the page

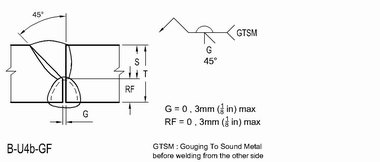

D15-B-U4b-GF

Go to top of the page

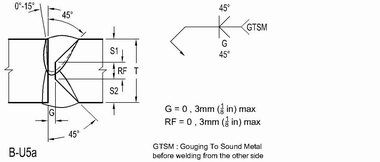

D15-B-U5a

Go to top of the page

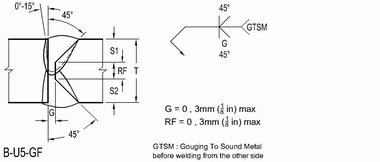

D15-B-U5-GF

Go to top of the page

D15-B-U6-20

Go to top of the page

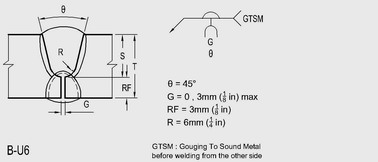

D15-B-U6-45

Go to top of the page

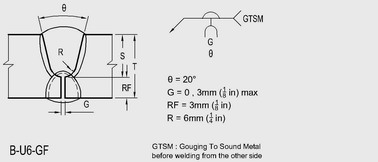

D15-B-U6-GF

Go to top of the page

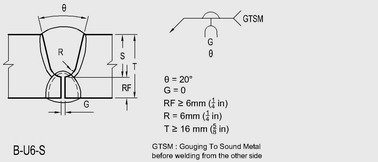

D15-B-U6-S

Go to top of the page

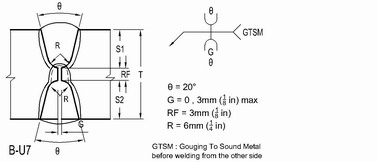

D15-B-U7-20

Go to top of the page

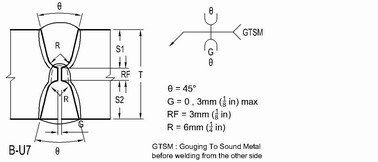

D15-B-U7-45

Go to top of the page

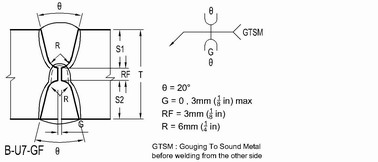

D15-B-U7-GF

Go to top of the page

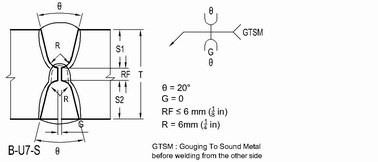

D15-B-U7-S

Go to top of the page

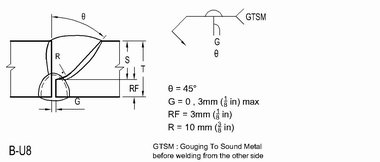

D15-B-U8

Go to top of the page

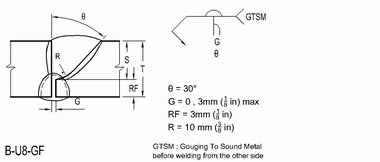

D15-B-U8-GF

Go to top of the page

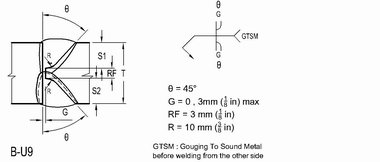

D15-B-U9

Go to top of the page

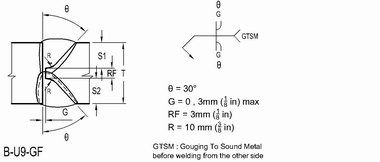

D15-B-U9-GF

Go to top of the page

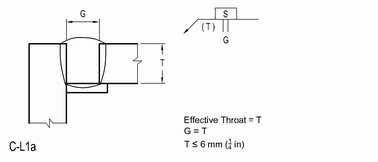

D15-C-L1a

Go to top of the page

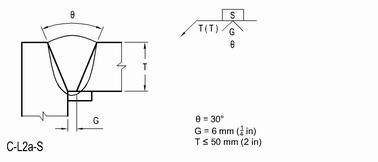

D15-C-L2a-S

Go to top of the page

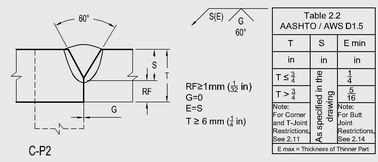

D15-C-P2

Go to top of the page

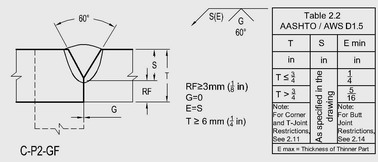

D15-C-P2-GF

Go to top of the page

D15-C-P2-S

Go to top of the page

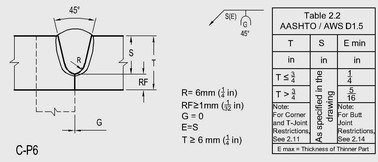

D15-C-P6

Go to top of the page

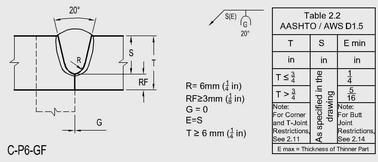

D15-C-P6-GF

Go to top of the page

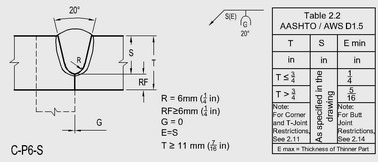

D15-C-P6-S

Go to top of the page

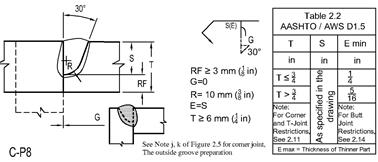

D15-C-P8

Go to top of the page

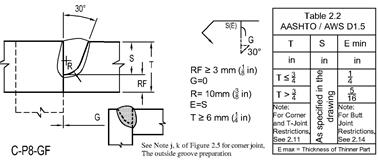

D15-C-P8-GF

Go to top of the page

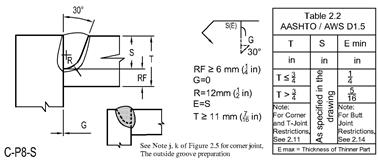

D15-C-P8-S

Go to top of the page

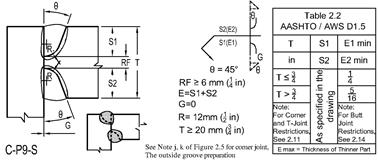

D15-C-P9-S-1

Go to top of the page

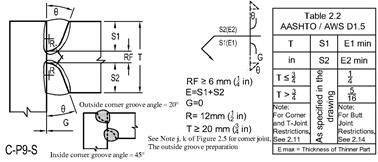

D15-C-P9-S-2

Go to top of the page

D15-C-U2

Go to top of the page

D15-C-U2a-20

Go to top of the page

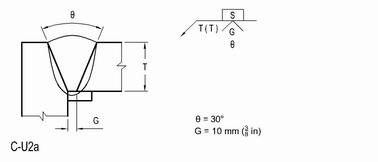

D15-C-U2a-30

Go to top of the page

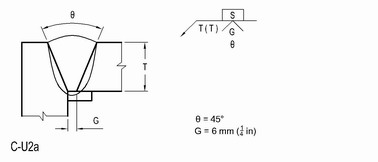

D15-C-U2a-45

Go to top of the page

D15-C-U2a-GF-30-1

Go to top of the page

D15-C-U2a-GF-30-2

Go to top of the page

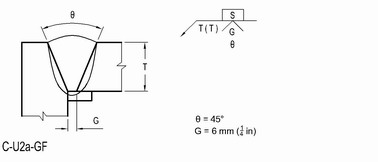

D15-C-U2a-GF-45

Go to top of the page

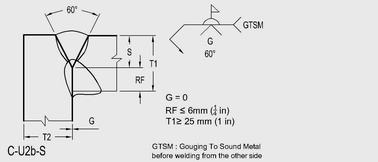

D15-C-U2b-S

Go to top of the page

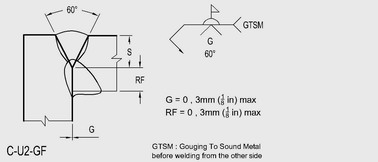

D15-C-U2-GF

Go to top of the page

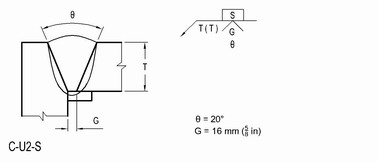

D15-C-U2-S

Go to top of the page

D15-C-U6-20

Go to top of the page

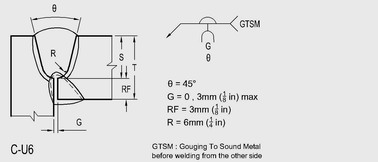

D15-C-U6-45

Go to top of the page

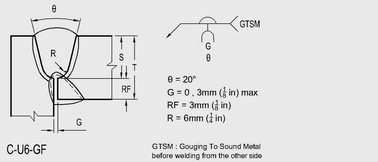

D15-C-U6-GF

Go to top of the page

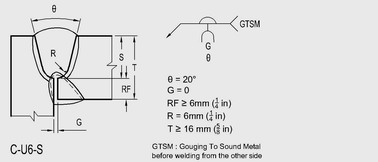

D15-C-U6-S

Go to top of the page

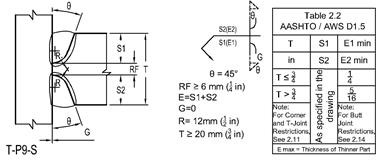

D15-T-P9-S

Go to top of the page

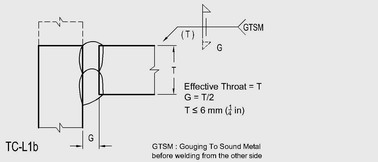

D15-TC-L1b

Go to top of the page

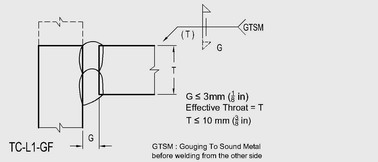

D15-TC-L1-GF

Go to top of the page

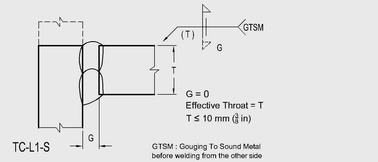

D15-TC-L1-S

Go to top of the page

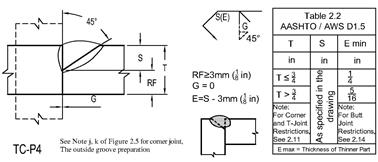

D15-TC-P4

Go to top of the page

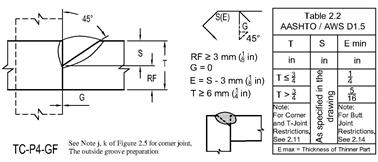

D15-TC-P4-GF

Go to top of the page

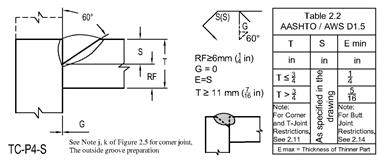

D15-TC-P4-S

Go to top of the page

D15-TC-P5

Go to top of the page

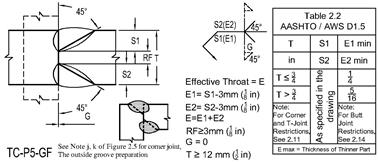

D15-TC-P5-GF

Go to top of the page

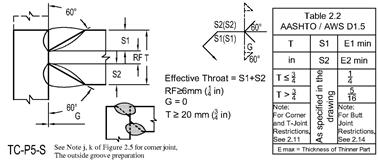

D15-TC-P5-S

Go to top of the page

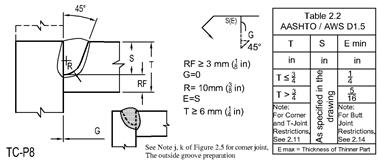

D15-TC-P8

Go to top of the page

D15-TC-P8-GF

Go to top of the page

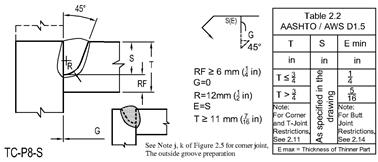

D15-TC-P8-S

Go to top of the page

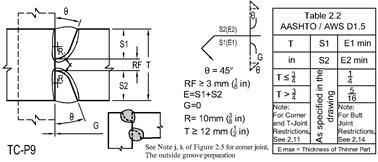

D15-TC-P9

Go to top of the page

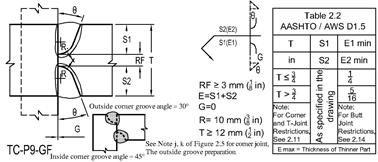

D15-TC-P9-GF

Go to top of the page

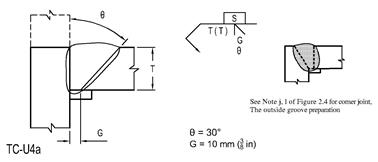

D15-TC-U4a-30

Go to top of the page

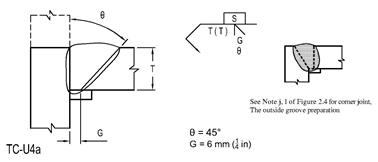

D15-TC-U4a-45

Go to top of the page

D15-TC-U4a-GF-30-1

Go to top of the page

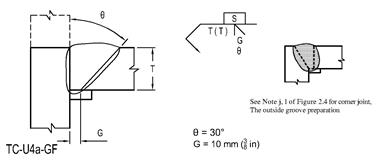

D15-TC-U4a-GF-30-2

Go to top of the page

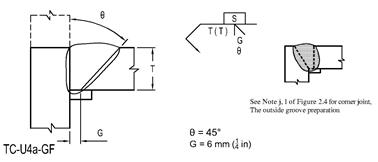

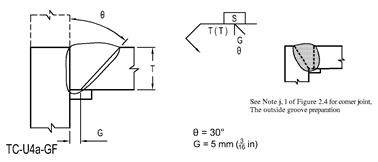

D15-TC-U4a-GF-45

Go to top of the page

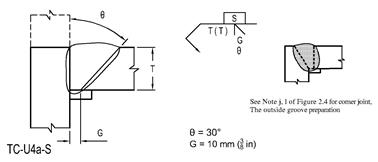

D15-TC-U4a-S-30

Go to top of the page

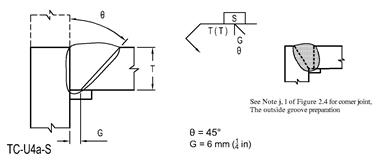

D15-TC-U4a-S-45

Go to top of the page

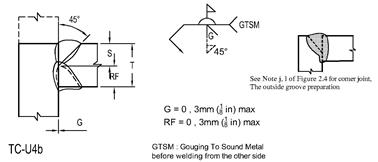

D15-TC-U4b

Go to top of the page

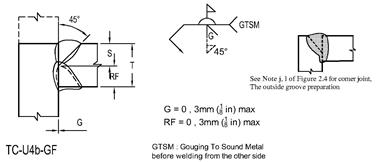

D15-TC-U4b-GF

Go to top of the page

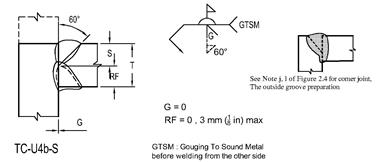

D15-TC-U4b-S

Go to top of the page

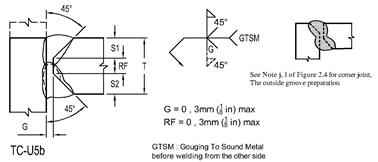

D15-TC-U5b

Go to top of the page

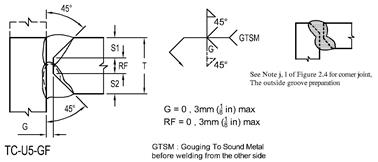

D15-TC-U5-GF

Go to top of the page

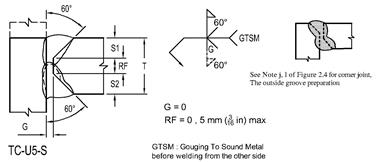

D15-TC-U5-S

Go to top of the page

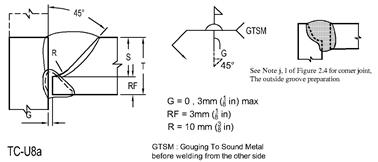

D15-TC-U8a

Go to top of the page

D15-TC-U8a-1

Go to top of the page

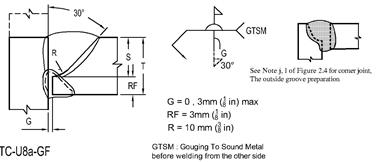

D15-TC-U8a-GF

Go to top of the page

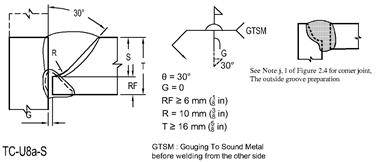

D15-TC-U8a-S

Go to top of the page

D15-TC-U9a-30

Go to top of the page

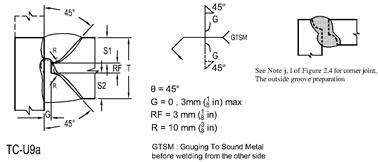

D15-TC-U9a-45

Go to top of the page

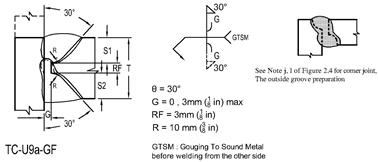

D15-TC-U9a-GF

Go to top of the page

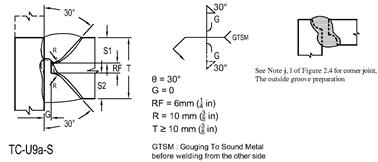

D15-TC-U9a-S

Go to top of the page
